How to run a third party EXE using InstallAware

In my last post, we covered using InstallAware to install or un-install a third party MSI package. In this post we’ll cover a related task, running a third party EXE setup package, using the Run Program As command.

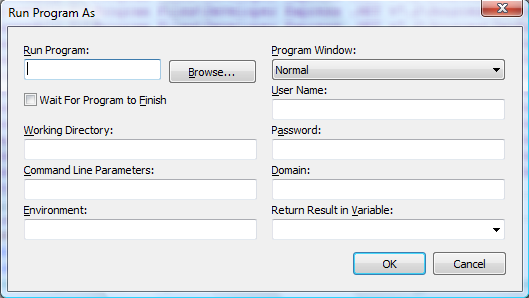

What does Run Program As do? As the name suggests, it runs a program (an EXE file) or pretty much any other kind of document/file that is recognized by the system and has a registered viewer/editor. The Run Program As command is very similar to the Run Program command – it has a few extra bells and whistles, so we’ll cover that one instead of the simpler Run Program command here. But remember that you are free to use either one that suits your needs…


As we did for the MSI setup, we’re going to place our Run Program As command just before the Apply Install command. Before moving further, also find out what command line parameters your EXE setup takes. Most EXE setups have fairly standard switches, such as “/s” or “/q” to indicate (without the quotes, of course) a silent installation. Other optional command line switches may also be available/necessary. Since this is different for each EXE setup, you’ll have to research this one on your own. Try running the setup file with a “/?” or a “/h” command line switch and see if it provides documentation on its proper usage. It’s also always a good idea to check the website of either the software vendor or the maker of the setup authoring toolkit, as one of the two is very likely to have their command line switches documented somewhere.

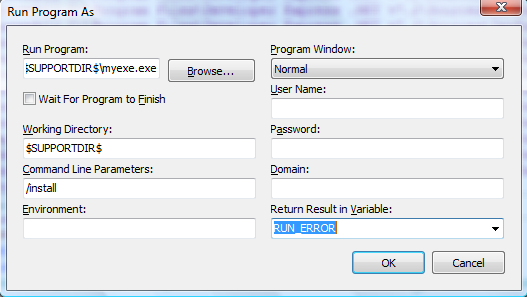

Let’s assume that the EXE setup we’re running today takes a parameter named “/install” to indicate an installation and uses “/uninstall” to indicate removal. So configure the Run Program As command window as in the screenshot below. If you want to run the EXE setup silently – probably a good idea – also add its silent installation parameter to the command line. I’ll also to catch the result of execution inside a variable called “RUN_ERROR“. If you haven’t defined this variable before, Run Program As will automatically define it for you. Of course, you’ll again need to check with your vendor documentation to find out what the return values for this EXE setup program are. Most EXE based setups return 0 to indicate success and 3010 to request a reboot (notably, Microsoft’s EXE setups). Your own experience may vary, based on the kinds of EXE files you’re trying this out with.

You probably want InstallAware to wait for your EXE setup to finish installing before moving on to the main installation. Running two setups on the target system simultaneously may not be that great of an idea after all πŸ™‚ Check the “Wait for Program to Finish” check-box to enable this option. Also note that unless you wait, the RUN_ERROR variable will not hold the actual value returned by your EXE setup, and it will only be useful in determining if the EXE setup was actually successfully launched.

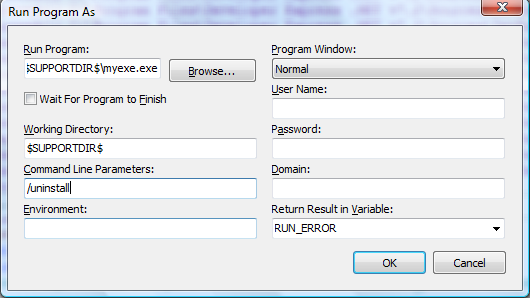

As for the uninstall, the process is very similar. We again call Run Program As, but this time with the “/uninstall” parameter. Place the command right before Apply Uninstall to make sure it’s being run at the right time in our MSIcode script, which in this case becomes right before the un-installation of our own product.

And yet again, I use the RUN_ERROR variable to catch any errors. A simple If command can later test the value of RUN_ERROR for me and determine if everything is kosher.

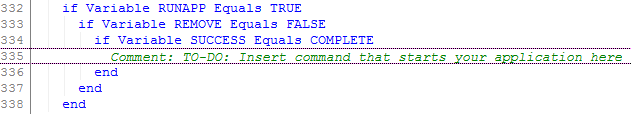

Well, that’s about it for running programs! While we’re at it though, another useful bit of information: You may also use Run Program As to execute your own main program file after your own setup finishes installing. By default, all InstallAware themes have a “Run Program Now” kind of checkbox in the setup finished wizard step, but even if your end-user checks it, that won’t do anything unless you let InstallAware know what to run here:

Replace the “Comment: TO-DO: Insert command that starts your application here” line with your own Run Program As command, specifying a target path like “$TARGETDIR$\yourexenamehere.exe“. Please note that most .NET applications today DO NEED their working directory field set to “$TARGETDIR$“, otherwise they will silently exit or raise strange startup errors. A well-authored application should never make assumptions about its startup folder, but some of us still do πŸ˜‰

The Run Program command, by the way, automatically sets the startup folder to the same folder as the program being run – so no need to manually enter a directory in there, if you used that command instead.

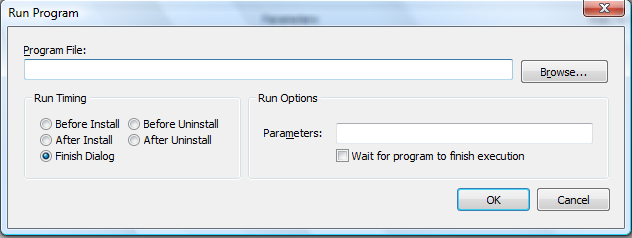

And for that matter, the Run Programs visual designer in the InstallAware IDE lets you do everything we did above graphically – even choosing the scheduling of the program being run:
a) Before Install
b) After Install
c) Before Uninstall
d) After Uninstall
e) Finish Dialog

Β
Completely visually. But hey – it was fun to learn how to do it in script too, wasn’t it πŸ˜‰ And if I had told you that at the beginning, you might not have read this far πŸ˜‰ At least now you know what MSIcode script the Run Programs visual designer emits in the background for you πŸ™‚

Well have a great month and talk to you soon!

Panagiotis Kefalidis
Software Design Team Lead
InstallAware Software Corporation

How to install (or remove) a third party MSI using InstallAware

Hello everybody! In this post I’m going to show you how to install third party MSI files using InstallAware. We’ll achieve this functionality using the (Un)Install MSI Setup and File Bag MSIcode commands.

First, what does the File Bag command do? Think of it as an extended support files mechanism. While support files (also called Creatives in the InstallAware IDE’s visual designers) are a great way to add temporary files to your setup, they lack the ability to recurse into multiple folders. Support files also cannot be placed inside a web media block – they always go inside the main setup.exe file. So File Bag is essentially a fix for these two problems – this command lets you add temporary files to your setup which are only available while setup is running (and not permanently installed on the end-user system), is web media block friendly, and also supports recursion.

Next, what does (Un)Install MSI Setup do? As the name implies, it can install or uninstall an MSI based setup. The beauty of this command, as opposed to using another built-in command like Run Program to install third party MSI files, is that it captures native progress as well as the final error/success state of the installation, along with any textual error description text if applicable. This makes your setup look more professional: even the progress of external setups will be displayed in your own custom dialogs at install time, and you can provide very effective error handling and troubleshooting.

Now that we’ve gotten the preliminaries out of the way, lets get to work. A good example of to use the File Bag command is in our own pre-built setup script for the Microsoft .NET Framework 3.0. You can add this runtime to your setup and then switch to the MSIcode view to investigate how we’ve used the command.

The File Bag MSIcode statement:

And the File Bag command window:

The pre-defined compiler variable #IADIR# simply returns InstallAware‘s main installation folder, which is the parent folder of the setup files for the .NET 3 Framework. In this field, you can enter any path you like, or just a single file name – as long as it points to the file(s) you want to add to your setup as a temporary resource.

The other interesting field in this command window is the NET30_FILEBAG variable. You may enter any custom variable in this field (as long as you pre-initialize it using the Set Variable command to an empty value). You should always provide a variable in this field, because the temporary location where File Bag makes your “bagged files” available at runtime will always change from machine to machine and setup to setup. So unless you provide a variable in this field, you won’t be able to access your bagged files at runtime, which beats the whole purpose of using File Bag in the first place!

Next lets take a look at the command window for the (Un)Install MSI Setup plug-in.

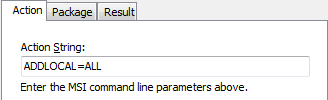

The Action tab indicates the installation/uninstallation mode and passes additional command line parameters to setup:

When installing an MSI file, you typically enter ADDLOCAL=ALL here, to install all of the features that are provided with the MSI. When uninstalling, you typically enter REMOVE=ALL. You are free to set any other MSI properties using this field, to install precisely those features that you require, or perform a customized MSI installation.

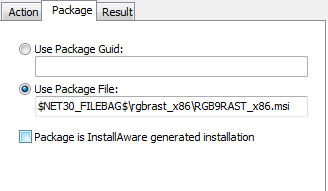

The Package tab specifies the MSI package to use, by filename (used when installing) or by package GUID (used when uninstalling):

When installing, you’ll want to specify the full path to the third party MSI file. The path will always be composed of the variable populated by File Bag, followed by the subfolder (if any) and the MSI file name. When uninstalling, you may again reference the MSI file by its full file path; alternately you may simply reference it by its unique package GUID (the GUID may be found by opening up your MSI package in Orca, navigating to the Property table, and copying the full value, including the squiggly parenthesis, corresponding to the ProductCode property). Using the GUID can be more advantageous when uninstalling, since you won’t need to provide access to the MSI file (often inconvenient to do at uninstall time – you hardly want to prompt your end-users for a setup CD when they’re just trying to remove your product).

Here’s an MSIcode snippet that shows the proper placement of the (Un)Install MSI Setup command for use at uninstall time:

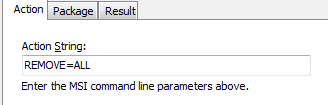

And this is how the Action tab would look for the command when uninstalling (again, feel free to add additional properties):

So now, you know all you need to add temporary files to your setup, and to run third party MSIs, even natively capturing their native setup progress, to install or remove them πŸ™‚

One last thing worthy of mention is the Setup Decompressor. This is a very handy tool that InstallAware originally built for Microsoft in 2005, to optimize the compressibility of their then-current .NET 1.1 Framework. This tool works with MSI (and a few other file types) and decompresses their data. However, it doesn’t just “extract” data like unzipping a ZIP file. What it does is, it first extracts the data, then re-inserts it back into the original file, in unmodified form – only uncompressed this time (think of it like re-creating a ZIP file with “stored” compression, so the files inside the ZIP archive are not compressed but just stored as-is).

Why would anybody want to do this? Data Compression 101: No matter how good a compression algorithm is, it cannot recompress data that has been compressed before. So for example, lets say you have a 10 MB file, and when you ZIP it, it goes down to 5 MB, and when you CAB it, it goes down to 3 MB…you might think that when you CAB the 5 MB ZIP, it would again come down to 3 MB…but that’s not the case. You still get a 5 MB CAB – because the 5 MB ZIP has already eliminated redundancies in the original uncompressed data stream (even though it did a worse job at it than the CAB).

InstallAware‘s compression algorithm is far better than the compression used in MSI files, but if you feed it pre-compressed data (such as “off-the-shelf” MSI files, which are always compressed using CAB), it won’t be able to reduce file sizes any further. For this reason, you want to run the Setup Decompressor on your MSI files before packaging your setup with InstallAware. Since Setup Decompressor is non-destructive, it will never harm your MSI files or change the files they contain in any way – other than reversing their compression. And this way, InstallAware is free to work miracles in compressing your MSI files!

Just take a look at .NET Framework sizes, when packaged natively (as by Microsoft) and with InstallAware (after pre-processing by the Setup Decompressor). Typical size savings are 40% over the already compressed size of the native Microsoft files, and sometimes as high as 67% (as in the case of the .NET Framework 1.1 with SP1 inlined). You’ll be pleased to know that the Setup Decompressor also works with other file types – such as CAB, MSM, MSP, and even some kinds of EXE files. Just try it out!

To open the Setup Decompressor tool, click the Decompress button in the Tools group on the Design tab of the InstallAware IDE:

All you have to after this is click the Browse button and select the MSI file you want to decompress. Click Decompress and the fully automated Setup Decompressor gets to work for you – and provides live status update as it investigates the various archives and streams inside your MSI file. I also recommend checking the Backup original file option – just in case you run into a bug that we haven’t encountered yet πŸ˜‰

So, that’s it for now. In my next post, we’ll cover a related topic, “How to run a third party EXE using InstallAware“. Until then!
